Thuis /Producten/micro- trillingsmotor/Micro Vibration Motor Portable Electric Device S4Z08B212-42P Low Voltage 3V Cylindrical Motor With Spring Contact

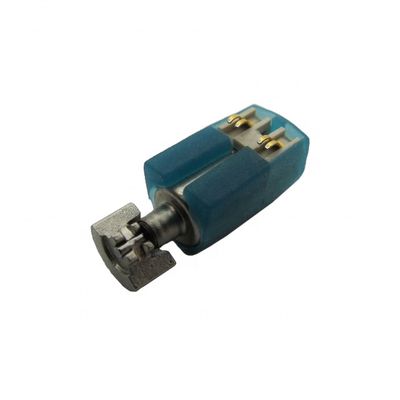

Micro Vibration Motor Portable Electric Device S4Z08B212-42P Low Voltage 3V Cylindrical Motor With Spring Contact

100.0 Pieces
MOQ
Micro Vibration Motor Portable Electric Device S4Z08B212-42P Low Voltage 3V Cylindrical Motor With Spring Contact
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: S4Z08B212-42P
Warranty: 3months-1year
Type: Cylindrical Vibration Motor
Customized: No
Rated Speed (r/min): 8000
Nominal Voltage: 3.0
Application: Wearable device, Mobile phone, Medical device etc
Diameter (mm): 4.0 / 5.0
Body (mm): 8.5
Overall (mm): 12.3
Operating Voltage (Vdc RMS): 2.4~3.6
Rated Current MAX (mA): 9
Typical Current (mA): 180
Vibration Force (G): 0.75
Certificering: None
Basis informatie
Certificering: None
Model Number: S4Z08B212-42P
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 4,000 pcs per carton, carton size 460mm*285mm*160mm 8,000 pcs per carton, carton size 460mm*285mm*305mm
Supply Ability: 300000 Piece/Pieces per Month
Productomschrijving
Product introduction
Product name:
S4Z08B212-42P Low Voltage 3V Electric Cylindrical Motor of Micro Vibration Motor with Spring Contact

Prices are primarily determined by the diameter of the body. Generally speaking, our 6mm diameter types are the lowest cost, followed by 4mm diameter which are approximately 10% higher in price. Our 7mm diameter vibration motors are approx. 20% higher than our 4mm types. Connectors and rubber sleeves / boots may be added to most leaded parts. Contact us for quote.
Products Description
Show Me All Products (Shown below are only six models of them:S4Z08B002-001; S4Z10B027-004; S4Z08B062-44P; S4Z08B124-992; S4Z08B212-42P; S7Z16B169-08T. If you want to know about other models, please email us.)
SAIBOW P/N
Installation method
Motor Size
Voltage
Current
Rated speed (rpm)
Vibe Force (G)
Dia / Hgt
Body
Overall
Operating(VDC)
Rated (ma) MAX
Typical* (ma) Avg.
Leadwire / FPC / SMD
(mm)
(mm)
(mm)
S4Z08B002-001
Leadwire
4
8
12.1
2.2~3.6
100
84
12000
0.9
S4Z10B027-004
Leadwire
4
10
14.8
2.2~3.6
60
42
14000
1.1
S4Z08B062-44P
Leadwire
4.0 / 4.7
8.2
12.8
2.4~3.6
12
9
8000
0.75
S4Z08B124-992
Spring
4.0 / 4.9
8.4
11.7
2.2~3.6
65
52
13500
0.95
S4Z08B212-42P
Spring
4.0 / 5.0
8.5
12.3
2.4~3.6
12
9
8000
0.75
S7Z16B169-08T
Leadwire
7
16.5
24.9
2.2~3.6
250
180
12000
7.3
MOUNTING CONFIGURATIONS OF VIBRATION MOTORS
The S4Z08B212-42P low current vibrator motor is designed to be mounted in the shell of the products housing, with its spring contact pins mating with corresponding contact pads on the PCB. It consumes a remarkably low current of 9 ma (typical) @ 3 Vdc while generating a vibration force of 0.75 Gpk. Energy consumption is a mere 27 mw. This series of low power consumption vibration motors are relatively high priced.
LRA Structure:
Product Drawing:
Application scenario
If you think our product is not suitable for you, you can click below to find the product you want: DC Micro Motor Coin Vibration Motors Cylindrical Vibration Motors BLDC&Linear(LRA) Vibration Motors
Company Profile
SAIBOW is based on Hong Kong and other emerging industrial markets in the Pearl River Delta, specializing in high-end automotive electronic products, communications mech-
anical and electrical parts of technical research and development, production and sales, international trade as one of the multinational enterprises, consumer comm- unications smart wearable electronic products, to provide domestic and foreign customers with high quality and cheap micro motors, Micro Camera modules, car speakers and smart audio, smart wearable watch (Smart Watches).


SAIBOW With the management policy of
"pioneering and innovative, positive and enterprising, teamwork, professional and pragmatic", SAIBOW is willing to establish a friendly and honest partnership with all customers, and sincerely welcome new and old customers to work hand in hand to strive for win-win, and seek sustainable development of the cause.
Production Workshop
Payment & Shipping
● Trade Assurance: The first order, we suggest you to use Trade Assurance.
● T/T: If stocks, 100% payment before shipping; if customized order, 30%  deposit deposit before production and balance 70% should be paid before delivery.
● Western Union, Money Gram, Paypal, all available.
● L/C: for large order.
● In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
● Large order: by air or sea, you could choose it.
● If you have your own forwarder, please tell us the detailed information.
MOTOR TRANSPORT
OCEAN SHIPPING
AIR TRANSPORT
FAQ
1. How long is the deliver and shipping? A: Deliver time depends on the quantity you order. usually it takes 15-25 working days. 2.Do you provide the samples? A: YES. Our company can provide the samples to you. 3. Do you have the item in stock? A: I am sorry we donot have the item in stock, All products are made with orders. 4. How can I know the product is suitable for me? A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use. 5.How to ship to us? A: We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
